How to Find the Right Part Number for Your Excavator

To find the right excavator part number, I combine the machine make, exact model, serial number or PIN, an official parts catalog or exploded diagram, and markings or photos from the existing component. I then verify the number against the machine configuration, component location, dimensions, and supplier fitment information before ordering.

!

When I help identify Excavator Replacement Parts, I do not rely on the model name alone. Two excavators with the same model designation may use different hydraulic valves, seals, sensors, filters, or electrical harnesses because of production year, serial range, regional specification, or a previous equipment update. This guide explains how I check each source of evidence and how I handle missing, damaged, obsolete, or superseded numbers.

Key Takeaways

• The excavator make, model, serial number, and PIN establish the correct machine configuration before parts identification begins.
• Official catalogs and exploded diagrams provide the strongest starting point when the original component number is unavailable.
• Component markings, dimensions, photographs, and installation location help confirm that a catalog number matches the physical part.
• OEM and aftermarket numbers may differ, so I verify cross-references, supplier fitment, and replacement status before purchase.
• A complete request should include model, serial number, photos, measurements, markings, quantity, component location, and destination.

How to Find the Right Part Number for Your Excavator: Step-by-Step Guide

I use an evidence-first process rather than searching by a general description such as “hydraulic pump for a 20-ton excavator.” The process starts with machine identification, continues through parts catalog research, and ends with supplier confirmation. Each stage reduces a different type of ordering error, including incorrect dimensions, incompatible revisions, and parts intended for another serial-number range.

Gather the Machine Identification Details

Before opening a parts database, I record the manufacturer, model designation, production series if available, serial number, product identification number, engine model, and approximate manufacture date. I also note whether the machine is a standard excavator, long-reach model, wheeled excavator, demolition configuration, or another variation. These details help separate similar machines that use different assemblies.

The serial number or PIN is often more useful than the model name because manufacturers divide parts coverage into serial ranges. A final drive, control valve, monitor, or wiring harness may change during production without changing the commercial model name. For that reason, I treat the machine identification plate as the primary reference and the model label as supporting information.

Check Your Excavator Make, Model, and Serial Number

For an excavator serial number lookup, I first inspect the main frame, operator’s cab area, engine compartment, and lower structure. The identification plate may be attached to the side of the cab, the front frame, the track frame, or another visible structural area, depending on the manufacturer. I photograph the entire plate and take a second close image of each character so that similar characters such as 8, B, 0, and O can be checked accurately.

Where can I find my excavator’s serial number?

I usually look in four areas: the cab frame or door jamb, the front or side of the main frame, the engine compartment, and the lower frame near the swing bearing or track structure. Used equipment may have a painted-over plate, a damaged label, or a second stamped number on the frame. If the plate is unreadable, I compare maintenance records, registration documents, previous inspection reports, and clear photographs of any stamped identification marks.

A serial number should be copied exactly, including letters, hyphens, prefixes, and suffixes. I do not remove an uncertain character or replace it with a likely one because one incorrect digit can produce a parts catalog result for a different machine range. When sending the number to a supplier, I include the photograph instead of relying only on typed text.

Record the Component’s Location and Function

Next, I describe where the part is installed and what it does. For example, “left travel motor case,” “pilot control valve under the cab,” “boom cylinder rod seal,” or “engine cooling fan belt” is more useful than “hydraulic part.” I also record whether the part is installed on the boom, arm, bucket linkage, upper structure, undercarriage, engine, hydraulic system, fuel system, or electrical system.

Component location helps distinguish parts that have similar names but different specifications. A hydraulic excavator may contain several pressure sensors, multiple hose assemblies, and different seals with similar dimensions. The installation position, connected lines, bolt pattern, connector type, and neighboring components provide additional evidence when a description in the catalog is brief.

Use an OEM Excavator Parts Catalog

An OEM excavator parts catalog normally organizes assemblies by machine group, component diagram, item number, and part number. I begin with the machine model and serial range, then open the section that matches the component location. The diagram helps me identify the item number, while the parts list connects that item number to the manufacturer’s part number and required quantity.

I check whether the catalog applies to the exact machine configuration rather than a similar model. Some catalog records separate standard and optional equipment, such as different arm lengths, auxiliary hydraulic packages, quick couplers, or blade arrangements. If the diagram shows several versions, I compare the visible machine configuration with the catalog notes before selecting a number.

How do I use an excavator parts diagram?

I first identify the complete assembly, then locate the individual item within the exploded view. After that, I match the diagram callout number to the parts list and read the quantity, description, serial range, and replacement notes. I also inspect nearby items because a seal kit, retaining ring, spacer, or mounting gasket may be required for the repair even when it is not part of the main component.

An exploded diagram is a location tool, not a complete fitment guarantee. It may not show every modification made by a dealer, owner, or remanufacturing shop. I therefore compare the diagram result with the old part’s markings, dimensions, connectors, mounting points, and the supplier’s fitment record.

Check the Existing Part for Markings and Measurements

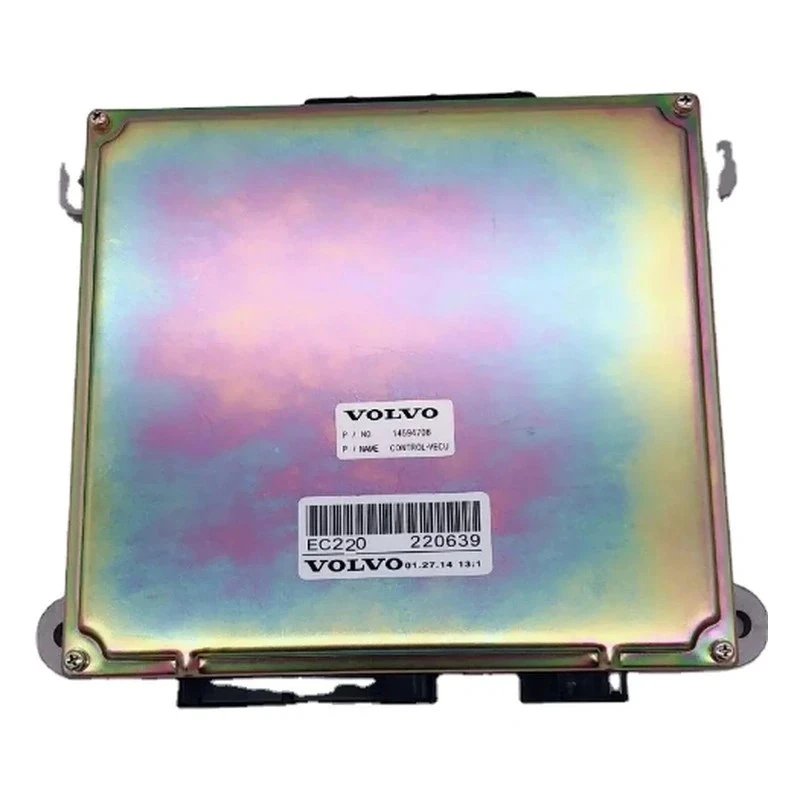

When the old component is available, I photograph every marking before cleaning or disassembling it. Useful evidence includes stamped numbers, cast-in characters, barcode labels, manufacturer logos, voltage ratings, pressure ratings, flow arrows, connector codes, and date codes. I photograph the front, rear, side, mounting face, ports, and any damaged label area.

I then measure the features that affect fitment. Depending on the part, these may include outside diameter, inside diameter, shaft diameter, overall length, bolt-hole spacing, thread size, port size, connector pin count, belt width, seal profile, or filter dimensions. Measurements should be taken with suitable tools and recorded in one unit system, preferably millimeters for mechanical parts unless the original specification uses another standard.

A physical match is not enough by itself. Two hydraulic cartridges may have the same outside diameter but different pressure ratings, spool configurations, or electrical signals. Likewise, two filters may appear interchangeable while using different bypass-valve settings or filtration specifications, so I treat measurements as confirmation rather than the only identification method.

Handle Missing, Damaged, or Obsolete Numbers

If the original number is missing, I return to the machine data and component location instead of guessing from appearance. I use the serial range, catalog diagram, assembly description, and photographs to build a candidate list. When the part has been replaced by a newer number, I check the catalog’s supersession note and confirm whether the new part requires additional seals, brackets, software settings, wiring changes, or installation hardware.

For a damaged label, I use partial characters only as supporting evidence. A fragment such as “12A” may match many unrelated components, so I combine it with the manufacturer, machine serial range, component location, dimensions, and connector or mounting details. If the part remains uncertain, I ask a dealer, equipment parts specialist, or qualified technician to inspect the component before ordering.

Obsolete does not always mean unavailable, but it may change the sourcing process. The correct replacement could be a superseding OEM number, a remanufactured assembly, an aftermarket equivalent, or a specialist-manufactured component. I request written confirmation of the old-to-new number relationship and the exact machine fitment before approving the purchase.

Compare OEM and Aftermarket Excavator Parts

An OEM part number identifies a manufacturer’s original catalog item, while an aftermarket number identifies a part supplied by another company. The numbers may not match even when the replacement is designed for the same application. I compare the technical specification, dimensions, material, pressure or temperature rating, connector arrangement, warranty terms, and stated machine fitment rather than choosing based only on a lower price.

For low-risk items such as common filters or standard seals, a documented aftermarket cross-reference may be suitable when specifications match. For serialized, calibrated, high-pressure, electronic, or safety-related components, I use a stricter review and request supplier confirmation before ordering. This distinction helps prevent a cheap but incompatible replacement from causing additional downtime or damage.

Confirm the Number with a Supplier

After selecting a candidate number, I send the supplier a complete identification package. It should contain the machine make, model, serial number or PIN, component name, installation location, old part number if visible, photographs, measurements, quantity, and delivery destination. I also state whether I need a complete assembly, repair kit, individual seal, replacement cartridge, or mounting hardware.

I ask the supplier to confirm five points in writing: the part number, machine serial-range fitment, whether the number is current or superseded, whether additional parts are required, and whether the quoted item is OEM, aftermarket, remanufactured, or used. If the supplier cannot confirm the serial range, I provide additional photos or request a specialist inspection. A clear confirmation record is useful if the part must later be returned or reviewed.

Use a Practical Identification Checklist

I use the following request template when contacting a dealer or parts supplier. It captures the information needed for most excavator parts lookup requests and reduces repeated messages between the equipment owner, technician, and supplier.

text Machine manufacturer: Machine model: Serial number or PIN: Production year, if known: Engine model, if relevant: Component name: Component location: Old part number or visible markings: Required quantity: Photos attached: Key measurements: Connector, thread, port, or bolt details: Known catalog or diagram reference: OEM, aftermarket, remanufactured, or used preference: Delivery destination: Required date: Additional symptoms or repair notes:

The request should include a clear photograph of the machine identification plate and several images of the component. I avoid sending only one close-up because it may hide the mounting face, cable routing, port arrangement, or neighboring parts. For hydraulic components, I include port markings and valve orientation; for electrical parts, I include connector faces and wire labels; for undercarriage parts, I include dimensions and the machine’s track or frame configuration.

Follow the Identification Decision Tree

I choose the next source according to the evidence available. If the part number is visible and legible, I cross-reference it with the machine serial range and supplier record. If the number is missing but the machine data is complete, I use the official diagram or dealer catalog; if the catalog is unclear, I provide photographs and measurements to a supplier or specialist.

• Clear part number and complete machine data: Confirm the number through the OEM catalog and supplier fitment record.
• No part number but readable machine plate: Use the OEM parts diagram and serial-range catalog.
• Damaged machine plate or uncertain serial: Compare maintenance records, stamped frame numbers, and dealer records before searching.
• Obsolete catalog number: Request the superseding number and installation requirements.
• Hydraulic, electronic, or calibrated component: Use supplier or specialist inspection when specifications cannot be confirmed.
• Simple standard item with complete specifications: Compare documented aftermarket alternatives after verifying dimensions and ratings.

This decision tree separates lower-risk identification methods from higher-risk assumptions. Model name alone is generally insufficient for hydraulic valves, pumps, electrical controllers, sensors, harnesses, and serialized assemblies. Direct measurement is useful, but it should support catalog and fitment evidence rather than replace it.

How Contractors Reduce Ordering Errors

When contractors need replacement parts quickly, I recommend creating a machine-specific record before a failure occurs. The record should contain the model, serial number, common filter numbers, belt information, undercarriage specifications, hydraulic component records, and photographs of identification plates. Maintenance records can then provide a starting point even when the original manual is unavailable.

For a used excavator, I also record any non-original modifications. A replacement engine, auxiliary hydraulic kit, quick coupler, aftermarket monitor, or rebuilt final drive may change the part required for a later repair. These changes should be documented with photographs, supplier invoices, and the installed component number so that future parts lookup does not rely on factory configuration alone.

Final Verification Before Ordering

Before I place an order, I compare the candidate number against the machine configuration, component location, dimensions, markings, and supplier fitment information. I check the quantity and confirm whether the number identifies one item, a pair, a kit, or a complete assembly. I also review shipping destination, return conditions, lead time, and whether the supplier needs the old component returned for exchange or inspection.

The final question is not simply whether a part looks similar. I ask whether the number is supported by at least two independent forms of evidence, such as an OEM catalog plus a physical marking, or a supplier cross-reference plus measured dimensions. This standard is especially important for excavator hydraulic components, electronic controls, and parts that can create secondary damage if incorrectly installed.

Conclusion

How to Find the Right Part Number for Your Excavator begins with the make, model, serial number, and product identification number, then continues through the existing part, official catalog, exploded diagram, cross-reference, and supplier confirmation. I treat the model name as a starting point rather than final proof because serial ranges and machine configurations can change the required part.

For the most reliable result, I photograph the machine plate and component, record markings and measurements, identify the installation location, check the OEM catalog, and ask the supplier to confirm fitment in writing. If the number is missing, damaged, obsolete, or superseded, I use catalog evidence and specialist inspection instead of guessing. This process gives equipment owners and contractors a practical method for ordering Excavator Replacement Parts from OEM, aftermarket, remanufactured, or used sources while reducing avoidable compatibility errors.

— Voight Song
